123.05: Constant pumping in a confined aquifer

import matplotlib.pyplot as plt
import numpy as np
import timflow.transient as tft

from bruggeman.flow1d import bruggeman_123_05_q

View the function (this will be rendered in LaTeX if sympy is installed).

bruggeman_123_05_q

\[\begin{split} \begin{aligned} \beta &= \sqrt{\frac{S}{D k}} \\ u &= \frac{\beta x}{2 \sqrt{t}} \\ \varphi{\left(x,t,Q,k,D,S \right)} &= \frac{2 Q \sqrt{t} \operatorname{ierfc}{\left(u,1 \right)}}{\sqrt{D S k} \operatorname{ierfc}{\left(0,0 \right)}} \\ \end{aligned} \end{split}\]

View the docstring to get a description of the input parameters.

help(bruggeman_123_05_q)

Help on function bruggeman_123_05_q in module bruggeman.flow1d:

bruggeman_123_05_q(x: float | numpy.ndarray[tuple[typing.Any, ...], numpy.dtype[numpy.float64]], t: float | numpy.ndarray[tuple[typing.Any, ...], numpy.dtype[numpy.float64]], Q: float, k: float, D: float, S: float) -> float | numpy.ndarray[tuple[typing.Any, ...], numpy.dtype[numpy.float64]]
    Solution for constant infiltration/pumping in a confined aquifer.

    Probably equivalent to Bruggeman 124.03?

    From Olsthoorn, Th. 2006. Van Edelman naar Bruggeman. Stromingen 12 (2006) p5-11.

    Parameters
    ----------
    x : float or ndarray
        Distance from the boundary [m]
    t : float or ndarray
        Time since the start of the rise [d]
    Q : float
        Infiltration (positive) or pumping (negative) rate [m^3/d]
    k : float
        Hydraulic conductivity [m/d]
    D : float
        Aquifer thickness [m]
    S : float
        Storage coefficient [-]

    Returns
    -------
    head : float
        head in the aquifer at distance x and time t [m]

Define some aquifer parameters.

k = 5.0  # m/d, hydraulic conductivity
D = 10.0  # m  # thickness aquifer
Ss = 1e-3 / D  # m^-1, specific storage coeffecient
Q = 2.0  # m^3/d, positive Q here means pumping in Timflow

Set up a timflow model.

mlconf = tft.ModelMaq(kaq=k, z=[0, -D], Saq=Ss, tmin=1e-3, tmax=1e3, topboundary="conf")
ls = tft.DischargeLineSink1D(mlconf, tsandq=[(0, Q)], layers=[0])
mlconf.solve()

self.neq  0
No unknowns. Solution complete

Compare timflow implementation to the analytical solution

x = np.linspace(0, 100, 101)
y = np.zeros_like(x)
t = np.logspace(-1, 0, 5)

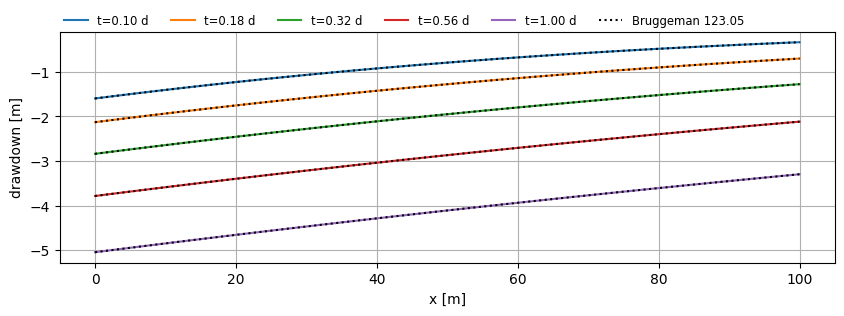

plt.figure(figsize=(10, 3))
for i in range(len(t)):
    h = mlconf.headalongline(x, y, t[i])
    plt.plot(x, h.squeeze(), label=f"t={t[i]:.2f} d")
    ha = bruggeman_123_05_q(x, t[i], -Q / 2, k, D, Ss * D)  # Q/2 because 2-sided flow
    plt.plot(x, ha, "k:")
plt.plot([], [], "k:", label="Bruggeman 123.05")
plt.legend(loc=(0, 1), frameon=False, ncol=6, fontsize="small")
plt.xlabel("x [m]")
plt.ylabel("drawdown [m]")
plt.grid()
